Workflows

In Azure Logic Apps Automation, a workflow is an automation workload that begins with an event (trigger), followed by the tasks you want to perform (actions). Workflows exist inside apps and support expressions, IntelliSense, inline code execution such as JavaScript, and more.

You build a workflow by using the designer or the AI workflow assistant. The platform’s runtime executes the workflow.

To get started, see Quickstart.

Stateful versus stateless

Azure Logic Apps Automation currently supports only stateful workflows. These workflows keep their full run history information for diagnostics and governance, and they support replay, retry, and long-running operations. Stateless workflows run only inside memory and optimize for short, fast executions.

Triggers

Here are some example triggers that can start a workflow:

Trigger group	Trigger	Description
Schedule	Recurrence	Run on a schedule like every minute, hour, day, or based on a cron expression.
Request	When an HTTP request is received	Run when an HTTP or HTTPS request arrives from an external caller. (non-polling)
Managed connectors	Outlook, SharePoint, Salesforce, and so on	Run when an event happens like When a new email arrives or When a new file is uploaded. Hosted and run in global Azure, usually requires a connection, and often with polling on a schedule.

Actions

Here are some example actions that can run in a workflow:

Action group	Action	Description
HTTP	HTTP	Send generic REST calls like GET or POST.
Control	- Condition - Switch - For each - Until	Change the flow based on meeting specific criteria.
Data Operations	- Compose - Parse JSON - Select - Filter array - Join	Perform data shaping.
Variables	- Initialize variable - Set variable - Increment variable - Decrement variable	Store and manage variable values.
Inline Code	Execute JavaScript code	Run code snippets inline with your workflow.
Service provider-based	Service Bus, Azure Blob Storage, Azure Queues	Run service-based operations natively and directly on the platform’s runtime.
Managed connectors	Outlook, SharePoint, Salesforce, and so on	Perform a task like Send an email or Upload a file. Run in global multitenant Azure. Usually requires a connection.
Agents	AI-driven actions with a system prompt and a toolset.

Expressions and dynamic content

Trigger and action parameters accept literal values and calculated values. For calculated values, use an expression to call prebuilt functions by using the platform’s expression language. The same expression syntax works wherever you can specify a value, for example, in parameters, conditions, loops, and agent system prompts.

Here are some example expressions, which always start with the @ character when you work with the underlying JSON, but aren’t required when you work with the designer:

@add(triggerBody()?.num1, 5)

@formatDateTime(utcNow(), 'yyyy-MM-dd')

@if(empty(variables('orders')), 'none', 'present')

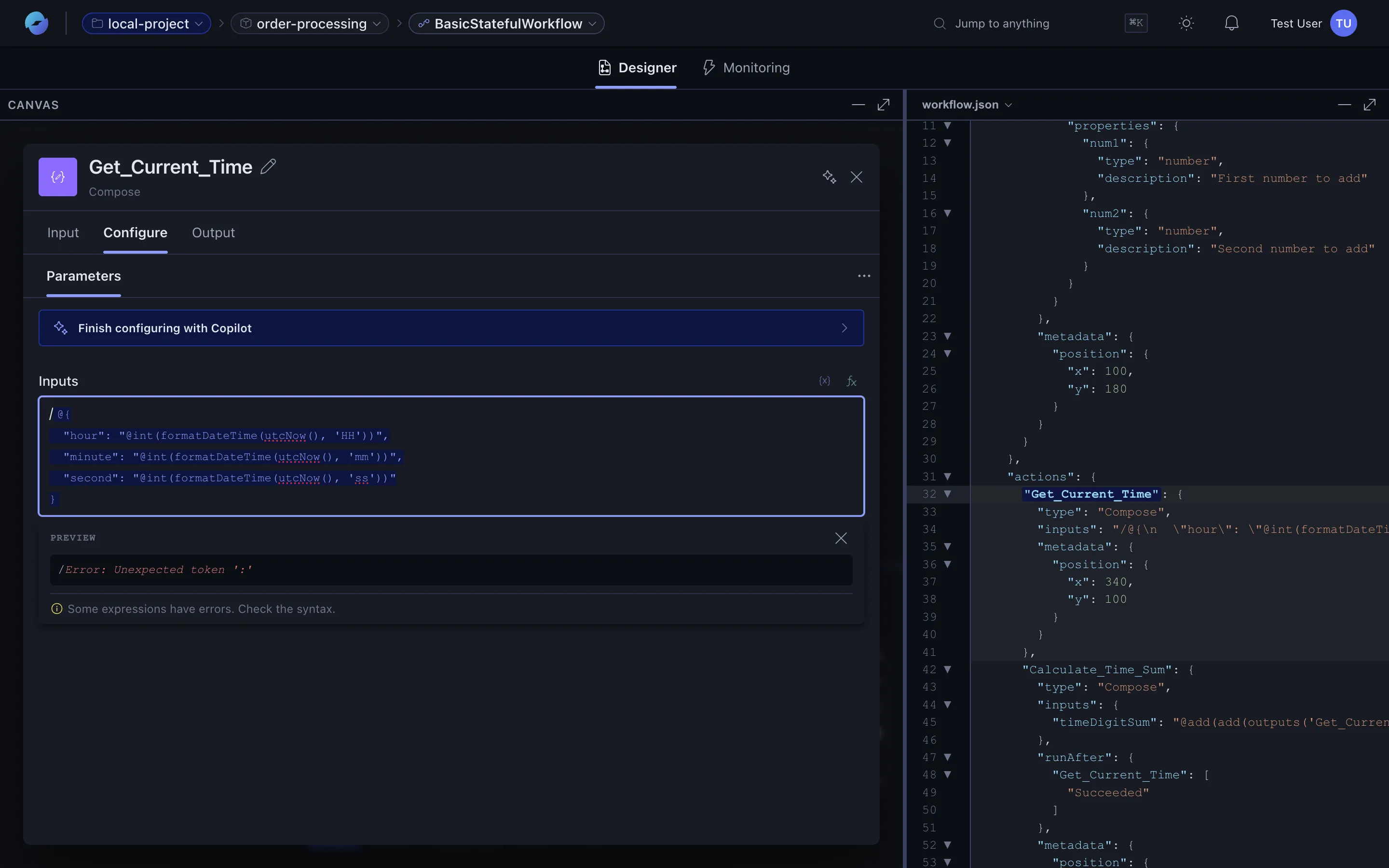

Action parameters also accept dynamic output from preceding steps in the same workflow. The designer lets you select this output wherever you can specify a value. In the underlying JSON, this output appears as expressions such as @triggerBody() and outputs('<action-name').

JavaScript code actions

For logic that’s hard to represent as an expression, add and run JavaScript by using the Inline Code action named Execute JavaScript code. For example, you might need to use code for tasks such as string parsing, complex data shaping, and multistep calculation. The JavaScript action runs in a sandbox with the Node.js runtime, accepts JSON inputs from the workflow, and returns a value that subsequent workflow actions can use.

Note

Use JavaScript actions sparingly. Most transformations are easier to parse and understand as a chain of actions. The JavaScript sandbox can’t make network calls. For network-bound logic, use the HTTP action instead.

// Action: Inline JavaScript Code
const orders = workflowContext.actions.Fetch_Orders.outputs.body;
return orders
  .filter(o => o.total > 100)
  .map(o => ({ id: o.id, customer: o.customerName, total: o.total }));

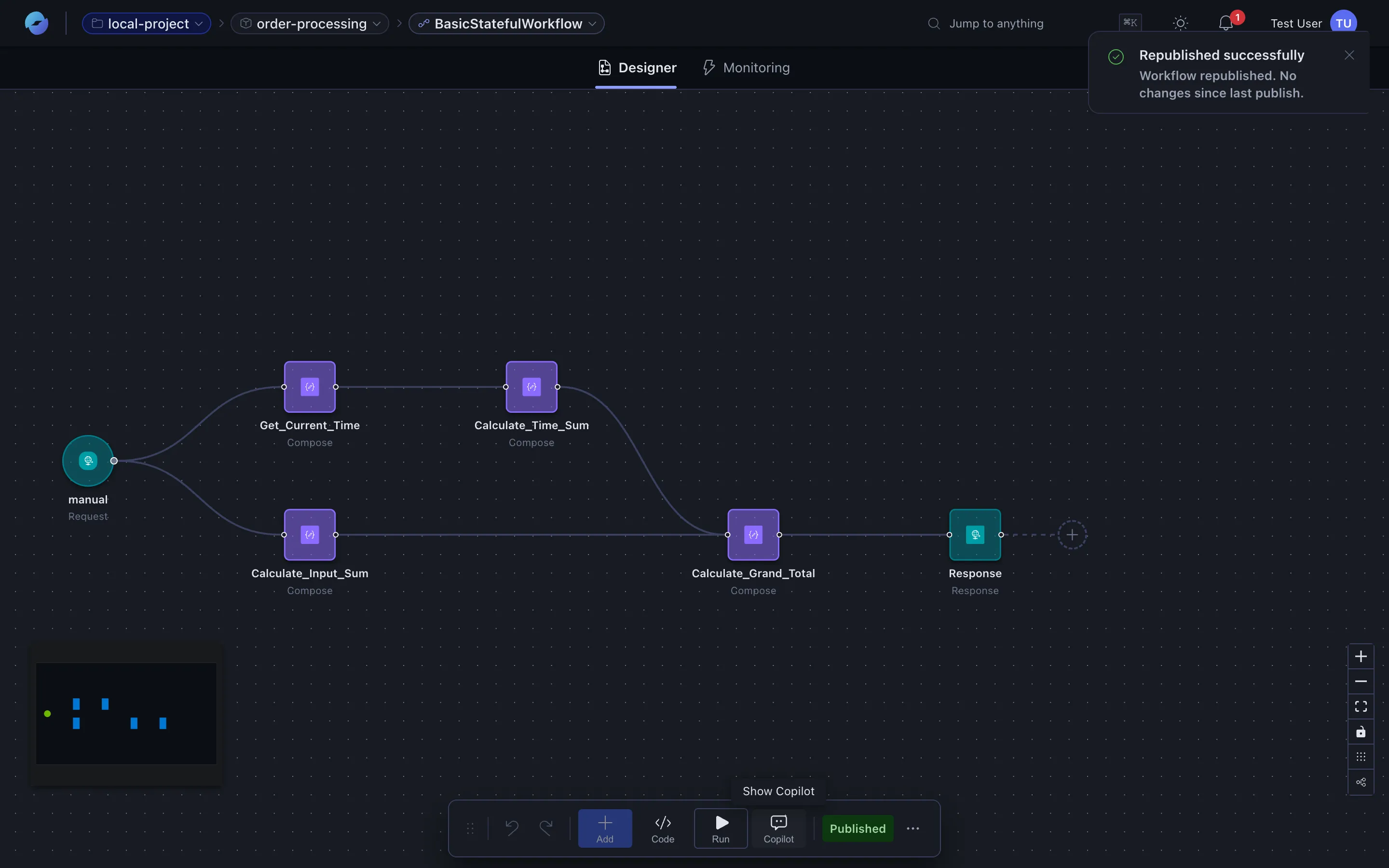

Draft versus published mode

Every workflow has a draft version and a published version. You always edit the draft version, while the read-only published version runs in the production environment and interacts with real, actual traffic.

The following table provides more information about draft versus published mode:

Behavior	Draft	Published
What is it	Your in-progress edits	The live, read-only version where the trigger fires against real, actual events
Where edits go	Automatically saved while you work	Updated only when you publish
Identifier	Draft label	Published label
Run history	Appears in the Version section under Drafts in monitoring view	Appears in the Version section under Published in monitoring view

Caution

When you publish your draft, you immediately replace the published version. No intermediate or separate “deploy” action exists. The next time when the trigger fires, the updated workflow runs.

Experiments and fast iteration

For triggers that work in draft mode, you can experiment and quickly iterate by running workflows on demand before you publish. Here’s the rules for testing triggers:

• You can test any trigger that you can manually run.

  This rule means you can iterate quickly on Request-based trigger workflows, and then publish after everything works as expected.

• You can only run time-based or event-based triggers in published mode.

  To test a non-Request trigger, publish your workflow first.

The following table describes common example triggers that run in draft versus published mode:

Trigger type	Trigger name	Test in draft?	How to test
Request	When an HTTP request is received	Yes	On the bottom designer toolbar, select Test, and provide a sample payload.
Schedule	Recurrence	No, must publish	Publish, and then wait for the scheduled time, or shorten the schedule.
Event-driven, such as Service Bus, Event Hubs, Azure Queues	Varies	No, must publish	Publish, and then push an event to the target resource.
Polls a service or system endpoint	Varies	No, must publish	Publish, and then trigger the event in the target service or system.

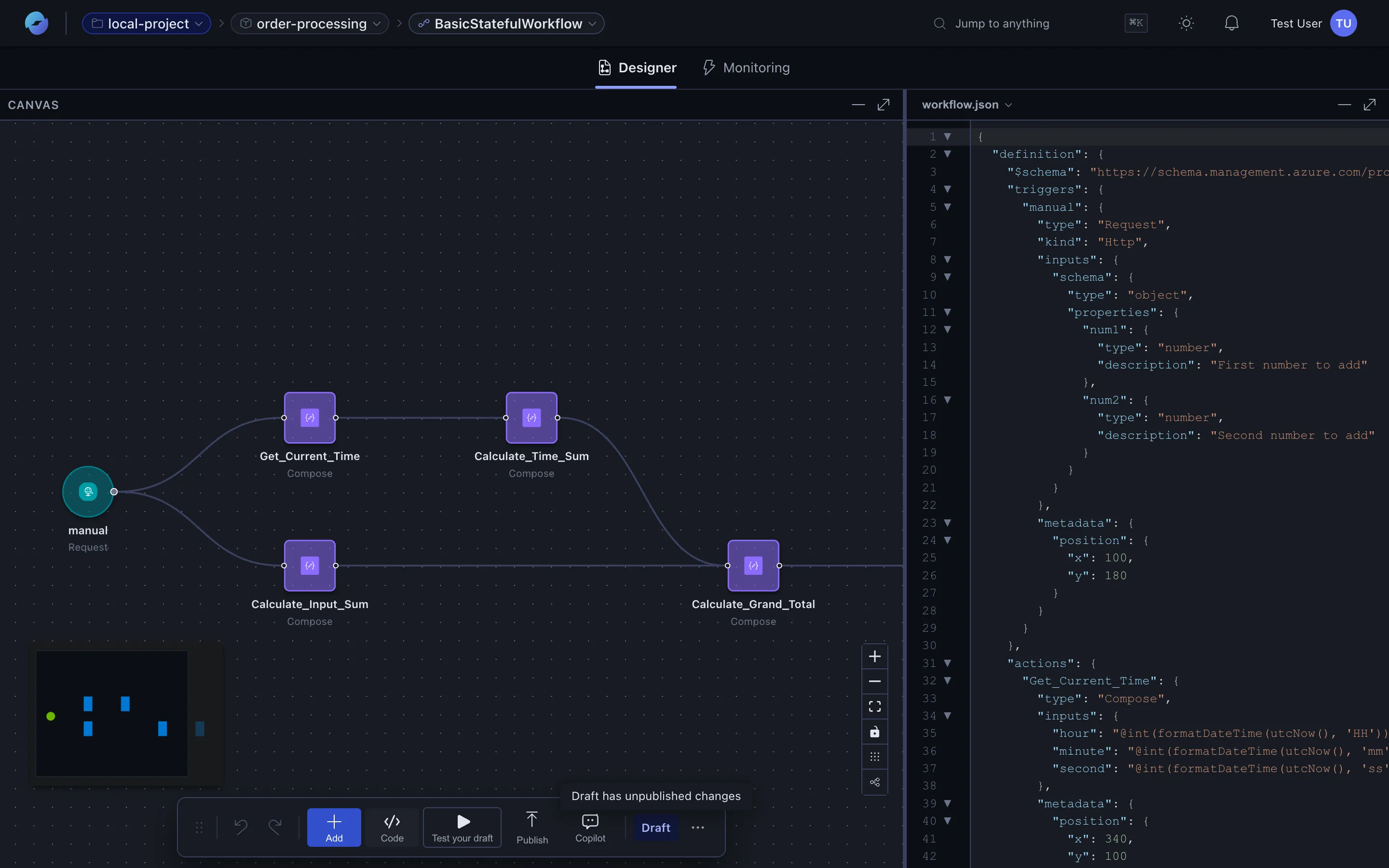

Code view and IntelliSense

The platform provides a code view where you can edit the workflow’s underlying JSON definition. The designer uses this same JSON definition, which stays synchronized with the code editor. The code editor is the same and is available everywhere that code appears, such as the workflow code view, inline code actions, and expression editor.

The editor offers the following capabilities:

Capability	Description
IntelliSense (auto-complete)	Start typing in the editor to view matching action types, expression functions, and known properties from the workflow schema. To display the popup, press Ctrl + Space or ⌃ Space.
Function signature help	Start typing the function name to view the signature and parameter information.
Parameter help	Move your mouse pointer over a parameter to view the type and description.
Schema-aware validation and diagnostics	Find invalid action types, malformed expressions, and missing required parameters, which appear underlined with a tooltip about the problem.
